WNG Rear Mudguard measures

Postby LuisPaz » Mon Feb 10, 2020 1:02 pm

Hi Boys!

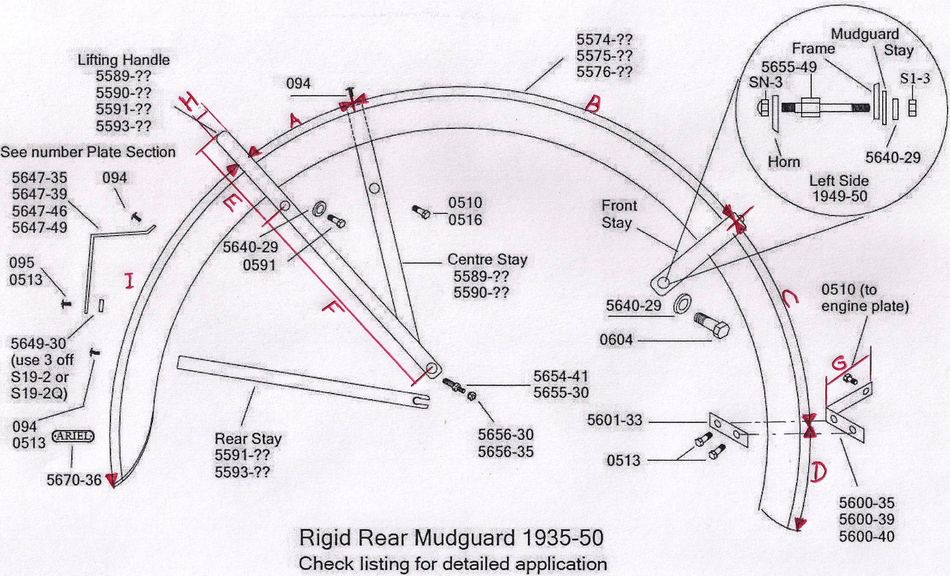

The rear fender of my WNG has had many modifications and I need to leave it almost original. I need your help with some measures to confirm that it is good and that it is wrong in my fender. In the drawing attached, you can see the measurements from letter A to I.
Thanks in advance!

Luis, from Argentina
1944 Ariel WNG

nevhunter
Holder of a Golden Anorak
Holder of a Golden Anorak
Posts: 4065
Joined: Tue May 10, 2011 9:42 am
Location: Victoria.. Australia.
Contact:

Re: WNG Rear Mudguard measures

Postby nevhunter » Tue Feb 11, 2020 5:07 am

Luis, the rear stay is usually bent up where the end goes to a slot. . As far as I know the military Guard is a standard rear guard for the period. Nev

User avatar
LuisPaz
Holder of a Waxed Cotton Anorak
Holder of a Waxed Cotton Anorak
Posts: 320
Joined: Fri Jan 19, 2018 12:59 am
Location: Argentina
Contact:

Re: WNG Rear Mudguard measures

Postby LuisPaz » Tue Feb 11, 2020 10:41 am

Thanks Nev for your comment. I have pictures of how the stay is, but not measures.
My mudguard has a section taller than the original and needs all the stays.... :cry:




May be this mudguard is not from Ariel,
Luis, from Argentina
1944 Ariel WNG

olaf.suess
Posts: 83
Joined: Tue Apr 26, 2011 7:32 pm
Contact:

Re: WNG Rear Mudguard measures

Postby olaf.suess » Tue Feb 11, 2020 1:42 pm

Hello
I bought an rear Mudguard in India.Just like you, I had the front piece of the mudguard. The rear panel is not available on its own.
And with the purchase I saved time and the fenders are not really expensive either.If there are no more parts then it has to be like this.

User avatar
LuisPaz
Holder of a Waxed Cotton Anorak
Holder of a Waxed Cotton Anorak
Posts: 320
Joined: Fri Jan 19, 2018 12:59 am
Location: Argentina
Contact:

Re: WNG Rear Mudguard measures

Postby LuisPaz » Tue Feb 11, 2020 5:34 pm

Hi Olaf
Thanks for your recommendations.
The purchase of spare parts in other countries has been hard in my country.
That is why I must try to repair everything with my own hands, leaving purchases abroad in cases of very first necessity... :cry: :x
Luis, from Argentina
1944 Ariel WNG

nevhunter
Holder of a Golden Anorak
Holder of a Golden Anorak
Posts: 4065
Joined: Tue May 10, 2011 9:42 am
Location: Victoria.. Australia.
Contact:

Re: WNG Rear Mudguard measures

Postby nevhunter » Wed Feb 12, 2020 12:25 am

Luis Here goes.( all in metric)
A 21 cms, B 37 cms, C 19 cms, D 17 cms, I= 37 cms Thickness H 18 mm E will depend on mudguard depth use 10.5 cms F 29.5 cms. G will vary from bike to bike and guard depth make it longer and fit to bike last. It's around 5cms.face to hole centre.
Other distance you may need is distance to rear stay from lift stay is 23.5 cms the original guard is hinged All stays go from one side to the other and are 1/2 round section except when in contact with the guard. Nev

User avatar
LuisPaz
Holder of a Waxed Cotton Anorak
Holder of a Waxed Cotton Anorak
Posts: 320
Joined: Fri Jan 19, 2018 12:59 am
Location: Argentina
Contact:

Re: WNG Rear Mudguard measures

Postby LuisPaz » Wed Feb 12, 2020 12:15 pm

Hi Nev

Thank you very much for the measurements and comments!!
Next Saturday, I will make a comparison of measures between what I should be and what I have in my fender. :D
Luis, from Argentina
1944 Ariel WNG

User avatar
LuisPaz
Holder of a Waxed Cotton Anorak
Holder of a Waxed Cotton Anorak
Posts: 320
Joined: Fri Jan 19, 2018 12:59 am
Location: Argentina
Contact:

Re: WNG Rear Mudguard measures

Postby LuisPaz » Sun Mar 01, 2020 4:32 pm

With the measures shared by you, I began to build the stay. My rear fender is not original wng, so what I build should adapt to this.


Curving tool ..






To be continued...
Luis, from Argentina
1944 Ariel WNG

User avatar
LuisPaz
Holder of a Waxed Cotton Anorak
Holder of a Waxed Cotton Anorak
Posts: 320
Joined: Fri Jan 19, 2018 12:59 am
Location: Argentina
Contact:

Re: WNG Rear Mudguard measures

Postby LuisPaz » Sun Mar 08, 2020 10:19 am

Hi Boys

last friday continue with the welding of the stays...






I've needed a lot of time in adjustments, but I think the result is good.
Luis, from Argentina
1944 Ariel WNG

JohnnyBeckett
Holder of a Golden Anorak
Holder of a Golden Anorak
Posts: 1164
Joined: Sat Jul 07, 2018 5:39 pm
Contact:

Re: WNG Rear Mudguard measures

Postby JohnnyBeckett » Sun Mar 08, 2020 9:10 pm

HI Luis i think you have made a very good and nice job of making it with what you had to make it with keep up the good work 8-) :)
